Glass Fiber Disc For Abrasive

1.Product Description

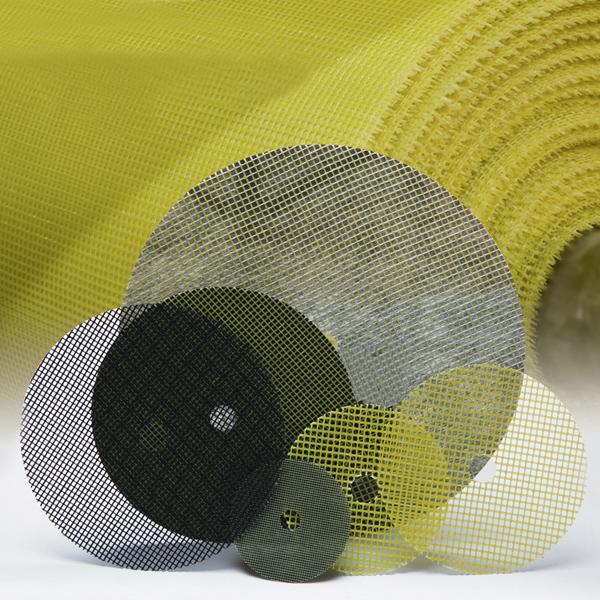

Fiberglass discs are die-cut from reinforced fiberglass cloth which were coated with phenolic and epoxy resin. With nice features like good bonding performance with abrasives, great structural strength and deflection resistance, high speed of cutting performances and excellent heat resistance, it is used as the best reinforced base material for different kinds of resin grinding wheels.


2. Expression of specification
〈composition〉〈mesh〉〈structure〉〈weight〉－〈warp〉×〈weft〉/〈OD〉×〈ID〉＋〈surface〉
Taking CNG260－5×5/176×23V＋W for example:
Expression of the cloth same as above;
OD: Outside diameter is 176mm
ID: Inside diameter is 23mm
Surface: V＋W means coated with non woven fabric＋wax paper[W means plain＋wax paper; P means coated with black paper; B means black color;R means Red color;CP means Crepe paper]

Size of Fiberglass Disc for Grinding Wheels

Note:  1. Tolerance range of OD ＜1mm，tolerance range of ID ＜0.5mm.

      2. Above mentioned sizes are common specifications, special sizes can be produced according to customers’ requirement within OD range 32-1300mm and ID range 7-130mm.

      3. According to customers’ requirement, covering materials include plain with wax paper, coating with black paper, non woven fabric and wax paper or with PE.

 （Physical and Chemical Requirement)
